At SnapLogic, we recently noticed that a particular build job that was responsible for deploying build artifacts to a Nexus repository via Maven had suddenly stopped, well, deploying. What was odd was that no error of any kind was being communicated, even in DEBUG mode.

Examining the history of the repository, what had changed was the addition of a new module (“slbugs”) to the existing multi-module Maven build. This module’s reposibility was to run some code health checks using Google’s error-prone static analysis tool to catch some programming mistakes that our developers occassionally made that had a negative effect at runtime.

What was different about this module versus the others was that it did not use the root POM as a parent (as it was sufficiently different from the other more product-focused modules). The other modules were also configured to use the deployAtEnd parameter of the parent’s maven-deploy-plugin plugin configuration.

The problem was that each of the product modules would log that they would be deployed at the end of the build, but after the last module ran its deploy phase, nothing would happen - no uploading of artifacts would be attempted, no warnings or debug messages logged to explain the inaction, and the build would just end with a SUCCESS status.

The solution turned out to be related to the wonderful world of Maven classloaders.

When the problem was reported and some obvious things had been tried (changing plugin versions etc.), I started to look into it. The first thing I did was create a standalone test that mirrored the basic structure of the multi-module project and chose what I deemed to be the pertinent configurations from the production POMs.

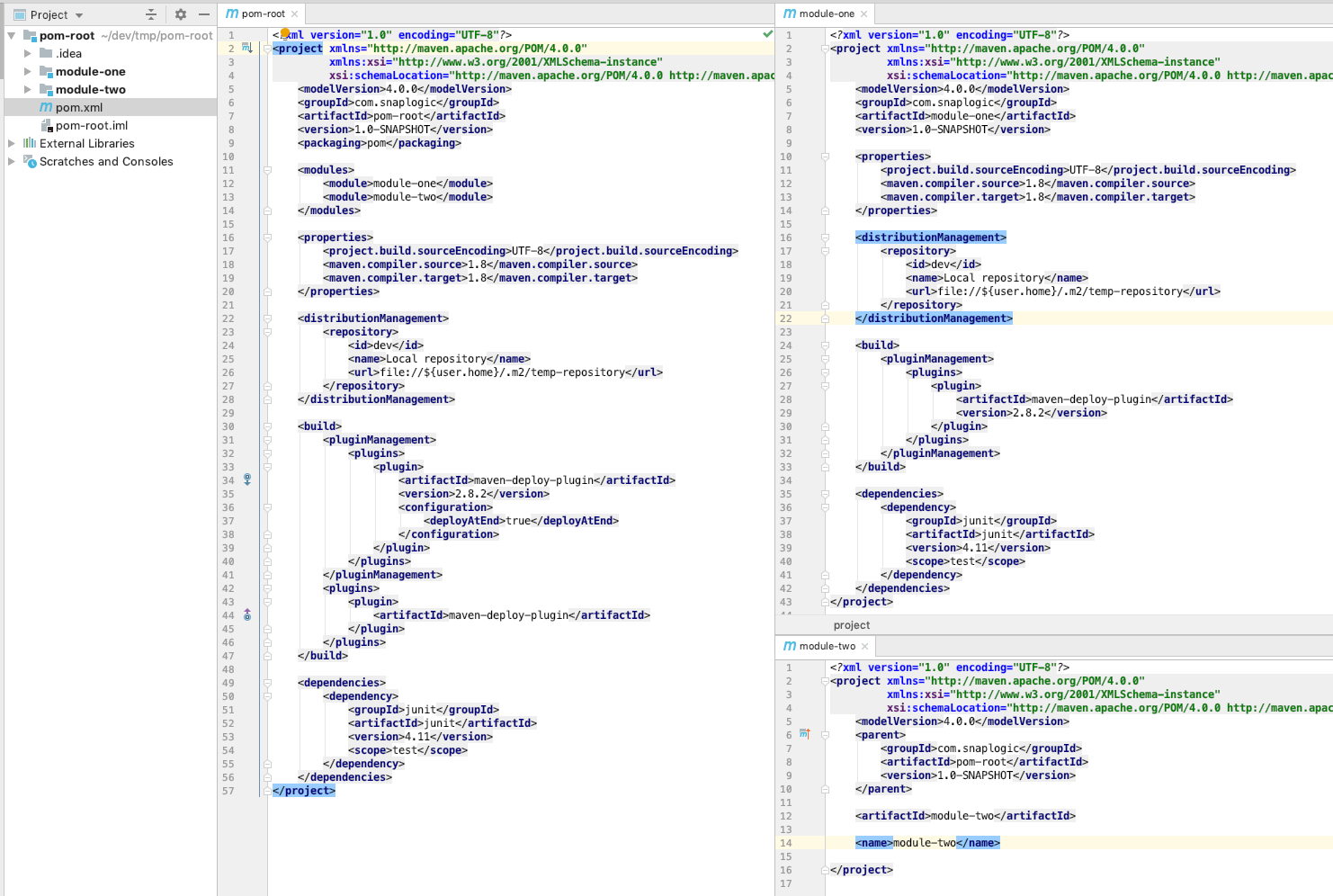

It looked like this:

multi-module project layout

Quite standard as you can see. pom-root defines the modules (module-one and module-two), where module-one does not use pom-root as its parent but module-two does. All dependency and plugin versions are identical, but pom-root (and therefore module-two by inheritence) uses the deployAtEnd configuration for the maven-deploy-plugin. For running the deploy phase, I setup a local empty temporary repository via the distributionManagement definition.

So, I ran mvn clean deploy and expected to see the problem reproduced:

> mvn clean deploy
[MVNVM] Using maven: 3.5.2
[INFO] Scanning for projects...
[INFO] ------------------------------------------------------------------------
[INFO] Reactor Build Order:
[INFO]
[INFO] module-one
[INFO] pom-root
[INFO] module-two
[INFO]
[INFO] ------------------------------------------------------------------------
[INFO] Building module-one 1.0-SNAPSHOT
[INFO] ------------------------------------------------------------------------
[INFO]
[INFO] --- maven-clean-plugin:2.5:clean (default-clean) @ module-one ---
[INFO] Deleting /Users/rhowlett/dev/tmp/pom-root/module-one/target
[INFO]
[INFO] --- maven-resources-plugin:2.6:resources (default-resources) @ module-one ---
[INFO] Using 'UTF-8' encoding to copy filtered resources.
[INFO] skip non existing resourceDirectory /Users/rhowlett/dev/tmp/pom-root/module-one/src/main/resources
[INFO]
[INFO] --- maven-compiler-plugin:3.1:compile (default-compile) @ module-one ---
[INFO] Changes detected - recompiling the module!
[INFO] Compiling 1 source file to /Users/rhowlett/dev/tmp/pom-root/module-one/target/classes
[INFO]
[INFO] --- maven-resources-plugin:2.6:testResources (default-testResources) @ module-one ---
[INFO] Using 'UTF-8' encoding to copy filtered resources.
[INFO] skip non existing resourceDirectory /Users/rhowlett/dev/tmp/pom-root/module-one/src/test/resources
[INFO]
[INFO] --- maven-compiler-plugin:3.1:testCompile (default-testCompile) @ module-one ---
[INFO] Changes detected - recompiling the module!
[INFO] Compiling 1 source file to /Users/rhowlett/dev/tmp/pom-root/module-one/target/test-classes
[INFO]
[INFO] --- maven-surefire-plugin:2.12.4:test (default-test) @ module-one ---
[INFO] Surefire report directory: /Users/rhowlett/dev/tmp/pom-root/module-one/target/surefire-reports

-------------------------------------------------------
 T E S T S
-------------------------------------------------------
Running com.snaplogic.AppTest
Tests run: 1, Failures: 0, Errors: 0, Skipped: 0, Time elapsed: 0.048 sec

Results :

Tests run: 1, Failures: 0, Errors: 0, Skipped: 0

[INFO]
[INFO] --- maven-jar-plugin:2.4:jar (default-jar) @ module-one ---
[INFO] Building jar: /Users/rhowlett/dev/tmp/pom-root/module-one/target/module-one-1.0-SNAPSHOT.jar
[INFO]
[INFO] --- maven-install-plugin:2.4:install (default-install) @ module-one ---
[INFO] Installing /Users/rhowlett/dev/tmp/pom-root/module-one/target/module-one-1.0-SNAPSHOT.jar to /Users/rhowlett/.m2/repository/com/snaplogic/module-one/1.0-SNAPSHOT/module-one-1.0-SNAPSHOT.jar
[INFO] Installing /Users/rhowlett/dev/tmp/pom-root/module-one/pom.xml to /Users/rhowlett/.m2/repository/com/snaplogic/module-one/1.0-SNAPSHOT/module-one-1.0-SNAPSHOT.pom
[INFO]
[INFO] --- maven-deploy-plugin:2.8.2:deploy (default-deploy) @ module-one ---
Downloading from dev: file:///Users/rhowlett/.m2/temp-repository/com/snaplogic/module-one/1.0-SNAPSHOT/maven-metadata.xml
Uploading to dev: file:///Users/rhowlett/.m2/temp-repository/com/snaplogic/module-one/1.0-SNAPSHOT/module-one-1.0-20190515.171609-1.jar
Uploaded to dev: file:///Users/rhowlett/.m2/temp-repository/com/snaplogic/module-one/1.0-SNAPSHOT/module-one-1.0-20190515.171609-1.jar (2.4 kB at 237 kB/s)
Uploading to dev: file:///Users/rhowlett/.m2/temp-repository/com/snaplogic/module-one/1.0-SNAPSHOT/module-one-1.0-20190515.171609-1.pom
Uploaded to dev: file:///Users/rhowlett/.m2/temp-repository/com/snaplogic/module-one/1.0-SNAPSHOT/module-one-1.0-20190515.171609-1.pom (1.4 kB at 702 kB/s)
Downloading from dev: file:///Users/rhowlett/.m2/temp-repository/com/snaplogic/module-one/maven-metadata.xml
Uploading to dev: file:///Users/rhowlett/.m2/temp-repository/com/snaplogic/module-one/1.0-SNAPSHOT/maven-metadata.xml
Uploaded to dev: file:///Users/rhowlett/.m2/temp-repository/com/snaplogic/module-one/1.0-SNAPSHOT/maven-metadata.xml (767 B at 192 kB/s)
Uploading to dev: file:///Users/rhowlett/.m2/temp-repository/com/snaplogic/module-one/maven-metadata.xml
Uploaded to dev: file:///Users/rhowlett/.m2/temp-repository/com/snaplogic/module-one/maven-metadata.xml (281 B at 94 kB/s)
[INFO]
[INFO] ------------------------------------------------------------------------
[INFO] Building pom-root 1.0-SNAPSHOT
[INFO] ------------------------------------------------------------------------
[INFO]
[INFO] --- maven-clean-plugin:2.5:clean (default-clean) @ pom-root ---
[INFO]
[INFO] --- maven-install-plugin:2.4:install (default-install) @ pom-root ---
[INFO] Installing /Users/rhowlett/dev/tmp/pom-root/pom.xml to /Users/rhowlett/.m2/repository/com/snaplogic/pom-root/1.0-SNAPSHOT/pom-root-1.0-SNAPSHOT.pom
[INFO]
[INFO] --- maven-deploy-plugin:2.8.2:deploy (default-deploy) @ pom-root ---
[INFO] Deploying com.snaplogic:pom-root:1.0-SNAPSHOT at end
[INFO]
[INFO] ------------------------------------------------------------------------
[INFO] Building module-two 1.0-SNAPSHOT
[INFO] ------------------------------------------------------------------------
[INFO]
[INFO] --- maven-clean-plugin:2.5:clean (default-clean) @ module-two ---
[INFO] Deleting /Users/rhowlett/dev/tmp/pom-root/module-two/target
[INFO]
[INFO] --- maven-resources-plugin:2.6:resources (default-resources) @ module-two ---
[INFO] Using 'UTF-8' encoding to copy filtered resources.
[INFO] skip non existing resourceDirectory /Users/rhowlett/dev/tmp/pom-root/module-two/src/main/resources
[INFO]
[INFO] --- maven-compiler-plugin:3.1:compile (default-compile) @ module-two ---
[INFO] Changes detected - recompiling the module!
[INFO] Compiling 1 source file to /Users/rhowlett/dev/tmp/pom-root/module-two/target/classes
[INFO]
[INFO] --- maven-resources-plugin:2.6:testResources (default-testResources) @ module-two ---
[INFO] Using 'UTF-8' encoding to copy filtered resources.
[INFO] skip non existing resourceDirectory /Users/rhowlett/dev/tmp/pom-root/module-two/src/test/resources
[INFO]
[INFO] --- maven-compiler-plugin:3.1:testCompile (default-testCompile) @ module-two ---
[INFO] Changes detected - recompiling the module!
[INFO] Compiling 1 source file to /Users/rhowlett/dev/tmp/pom-root/module-two/target/test-classes
[INFO]
[INFO] --- maven-surefire-plugin:2.12.4:test (default-test) @ module-two ---
[INFO] Surefire report directory: /Users/rhowlett/dev/tmp/pom-root/module-two/target/surefire-reports

-------------------------------------------------------
 T E S T S
-------------------------------------------------------
Running com.snaplogic.AppTest
Tests run: 1, Failures: 0, Errors: 0, Skipped: 0, Time elapsed: 0.043 sec

Results :

Tests run: 1, Failures: 0, Errors: 0, Skipped: 0

[INFO]
[INFO] --- maven-jar-plugin:2.4:jar (default-jar) @ module-two ---
[INFO] Building jar: /Users/rhowlett/dev/tmp/pom-root/module-two/target/module-two-1.0-SNAPSHOT.jar
[INFO]
[INFO] --- maven-install-plugin:2.4:install (default-install) @ module-two ---
[INFO] Installing /Users/rhowlett/dev/tmp/pom-root/module-two/target/module-two-1.0-SNAPSHOT.jar to /Users/rhowlett/.m2/repository/com/snaplogic/module-two/1.0-SNAPSHOT/module-two-1.0-SNAPSHOT.jar
[INFO] Installing /Users/rhowlett/dev/tmp/pom-root/module-two/pom.xml to /Users/rhowlett/.m2/repository/com/snaplogic/module-two/1.0-SNAPSHOT/module-two-1.0-SNAPSHOT.pom
[INFO]
[INFO] --- maven-deploy-plugin:2.8.2:deploy (default-deploy) @ module-two ---
Downloading from dev: file:///Users/rhowlett/.m2/temp-repository/com/snaplogic/pom-root/1.0-SNAPSHOT/maven-metadata.xml
Uploading to dev: file:///Users/rhowlett/.m2/temp-repository/com/snaplogic/pom-root/1.0-SNAPSHOT/pom-root-1.0-20190515.171609-1.pom
Uploaded to dev: file:///Users/rhowlett/.m2/temp-repository/com/snaplogic/pom-root/1.0-SNAPSHOT/pom-root-1.0-20190515.171609-1.pom (1.8 kB at 602 kB/s)
Downloading from dev: file:///Users/rhowlett/.m2/temp-repository/com/snaplogic/pom-root/maven-metadata.xml
Uploading to dev: file:///Users/rhowlett/.m2/temp-repository/com/snaplogic/pom-root/1.0-SNAPSHOT/maven-metadata.xml
Uploaded to dev: file:///Users/rhowlett/.m2/temp-repository/com/snaplogic/pom-root/1.0-SNAPSHOT/maven-metadata.xml (594 B at 119 kB/s)
Uploading to dev: file:///Users/rhowlett/.m2/temp-repository/com/snaplogic/pom-root/maven-metadata.xml
Uploaded to dev: file:///Users/rhowlett/.m2/temp-repository/com/snaplogic/pom-root/maven-metadata.xml (279 B at 70 kB/s)
Downloading from dev: file:///Users/rhowlett/.m2/temp-repository/com/snaplogic/module-two/1.0-SNAPSHOT/maven-metadata.xml
Uploading to dev: file:///Users/rhowlett/.m2/temp-repository/com/snaplogic/module-two/1.0-SNAPSHOT/module-two-1.0-20190515.171610-1.jar
Uploaded to dev: file:///Users/rhowlett/.m2/temp-repository/com/snaplogic/module-two/1.0-SNAPSHOT/module-two-1.0-20190515.171610-1.jar (2.1 kB at 710 kB/s)
Uploading to dev: file:///Users/rhowlett/.m2/temp-repository/com/snaplogic/module-two/1.0-SNAPSHOT/module-two-1.0-20190515.171610-1.pom
Uploaded to dev: file:///Users/rhowlett/.m2/temp-repository/com/snaplogic/module-two/1.0-SNAPSHOT/module-two-1.0-20190515.171610-1.pom (533 B at 178 kB/s)
Downloading from dev: file:///Users/rhowlett/.m2/temp-repository/com/snaplogic/module-two/maven-metadata.xml
Uploading to dev: file:///Users/rhowlett/.m2/temp-repository/com/snaplogic/module-two/1.0-SNAPSHOT/maven-metadata.xml
Uploaded to dev: file:///Users/rhowlett/.m2/temp-repository/com/snaplogic/module-two/1.0-SNAPSHOT/maven-metadata.xml (767 B at 256 kB/s)
Uploading to dev: file:///Users/rhowlett/.m2/temp-repository/com/snaplogic/module-two/maven-metadata.xml
Uploaded to dev: file:///Users/rhowlett/.m2/temp-repository/com/snaplogic/module-two/maven-metadata.xml (281 B at 94 kB/s)
[INFO] ------------------------------------------------------------------------
[INFO] Reactor Summary:
[INFO]
[INFO] module-one ......................................... SUCCESS [  2.970 s]
[INFO] pom-root ........................................... SUCCESS [  0.131 s]
[INFO] module-two ......................................... SUCCESS [  0.652 s]
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 3.905 s
[INFO] Finished at: 2019-05-15T11:16:10-06:00
[INFO] Final Memory: 19M/309M
[INFO] ------------------------------------------------------------------------

Odd. The deployment happened perfectly. Then why wasn’t it happening with the production build?

I decided to debug. I added the source for version 2.8.2 of the maven-deploy-plugin to my IDE and ran the same command except this time with mvnDebug and a Remote Debug configuration setup. I put a breakpoint in the execute() method of the DeployMojo class and hoped to see what was causing the deployment not to be executed:

/**
 * When building with multiple threads, reaching the last project doesn't have to mean that all projects are ready
 * to be deployed
 */
private static final AtomicInteger readyProjectsCounter = new AtomicInteger();

...

public void execute()
        throws MojoExecutionException, MojoFailureException {
    boolean addedDeployRequest = false;
    if (skip) {
        getLog().info("Skipping artifact deployment");
    } else {
        failIfOffline();

        DeployRequest currentExecutionDeployRequest =
                new DeployRequest().setProject(project).setUpdateReleaseInfo(isUpdateReleaseInfo()).setRetryFailedDeploymentCount(getRetryFailedDeploymentCount()).setAltReleaseDeploymentRepository(altReleaseDeploymentRepository).setAltSnapshotDeploymentRepository(altSnapshotDeploymentRepository).setAltDeploymentRepository(altDeploymentRepository);

        if (!deployAtEnd) {
            deployProject(currentExecutionDeployRequest);
        } else {
            deployRequests.add(currentExecutionDeployRequest);
            addedDeployRequest = true;
        }
    }

    boolean projectsReady = readyProjectsCounter.incrementAndGet() == reactorProjects.size();
    if (projectsReady) {
        synchronized (deployRequests) {
            while (!deployRequests.isEmpty()) {
                deployProject(deployRequests.remove(0));
            }
        }
    } else if (addedDeployRequest) {
        getLog().info("Deploying " + project.getGroupId() + ":" + project.getArtifactId() + ":"
                + project.getVersion() + " at end");
    }
}

It looked clear that the projectsReady boolean would be key. Its value was determined by the equality of a static AtomicInteger called readyProjectsCounter and the size of the reactorProjects collection. The only way for the build to log that it was going to deploy at the end and then not deploy the final module, would be if the readyProjectsCounter and reactorProjects size had some kind of off-by-X error. Indeed, the debugger showed that, for the production build, readyProjectsCounter was one less than the collection size. But what would cause that?

I dived into the debug logs of the production build to try to see if I could identify anything of note. After trying quite a few different things, something caught my eye.

When “slbugs” was running its deploy phase with the maven-deploy-plugin, it logged:

[DEBUG] Created new class realm plugin>org.apache.maven.plugins:maven-deploy-plugin:2.8.2
[DEBUG] Importing foreign packages into class realm plugin>org.apache.maven.plugins:maven-deploy-plugin:2.8.2
[DEBUG]   Imported:  < maven.api
[DEBUG] Populating class realm plugin>org.apache.maven.plugins:maven-deploy-plugin:2.8.2
[DEBUG]   Included: org.apache.maven.plugins:maven-deploy-plugin:jar:2.8.2
[DEBUG]   Included: backport-util-concurrent:backport-util-concurrent:jar:3.1
[DEBUG]   Included: org.codehaus.plexus:plexus-interpolation:jar:1.11
[DEBUG]   Included: junit:junit:jar:3.8.1
[DEBUG]   Included: org.codehaus.plexus:plexus-utils:jar:3.0.15
[DEBUG] Configuring mojo org.apache.maven.plugins:maven-deploy-plugin:2.8.2:deploy from plugin realm ClassRealm[plugin>org.apache.maven.plugins:maven-deploy-plugin:2.8.2, parent: sun.misc.Launcher$AppClassLoader@3d4eac69]

When the parent POM was running, this was logged:

[DEBUG] Created new class realm plugin>org.apache.maven.plugins:maven-deploy-plugin:2.8.2-932771130
[DEBUG] Importing foreign packages into class realm plugin>org.apache.maven.plugins:maven-deploy-plugin:2.8.2-932771130
[DEBUG]   Imported:  < maven.api
[DEBUG] Populating class realm plugin>org.apache.maven.plugins:maven-deploy-plugin:2.8.2-932771130
[DEBUG]   Included: org.apache.maven.plugins:maven-deploy-plugin:jar:2.8.2
[DEBUG]   Included: backport-util-concurrent:backport-util-concurrent:jar:3.1
[DEBUG]   Included: org.codehaus.plexus:plexus-interpolation:jar:1.11
[DEBUG]   Included: junit:junit:jar:3.8.1
[DEBUG]   Included: org.codehaus.plexus:plexus-utils:jar:3.0.15
[DEBUG] Configuring mojo org.apache.maven.plugins:maven-deploy-plugin:2.8.2:deploy from plugin realm ClassRealm[plugin>org.apache.maven.plugins:maven-deploy-plugin:2.8.2-932771130, parent: sun.misc.Launcher$AppClassLoader@3d4eac69]

This -932771130 suffix was strange. When I turned on debug logging for pom-root by running mvn -X clean deploy, I saw no such recreation of a “class realm”. In fact, every plugin was “initialized” once.

But in the production build, many plugins (maven-install-plugin, maven-resources-plugin etc.), all seem to have been “recreated” when the build moved on to the root pom (after the initial “slbugs” module had been deployed). What was triggering that? I started to consume some articles from the web, including:

I’ll admit that I was a bit puzzled. Neither build had any custom extensions defined, but I started focusing on whether there was anything non-standard defined in the production build POM, looking at things like <properties>, <build>, or anything around <plugins>.

Sure enough, I noticed the following:

<pluginRepositories>
    <pluginRepository>
        <id>apache.snapshots</id>
        <name>Apache Snapshots</name>
        <url>http://repository.apache.org/content/groups/snapshots-group/</url>
        <releases>
            <enabled>true</enabled>
        </releases>
        <snapshots>
            <enabled>true</enabled>
        </snapshots>
    </pluginRepository>
</pluginRepositories>

This was added many years ago to the build, probably to avail of some SNAPSHOT-versioned plugin. So I decided to replicate this in the standalone test’s pom-root’s pom.xml by adding the following:

<pluginRepositories>
    <pluginRepository>
        <id>temp.repo</id>
        <name>Temp Repo</name>
        <url>file://${user.home}/.m2/temp-repository</url>
    </pluginRepository>
</pluginRepositories>

I re-ran the build and I finally I had reproduced the problem (the non-deployment of pom-root and module-two):

...
[INFO] --- maven-deploy-plugin:2.8.2:deploy (default-deploy) @ module-two ---
[INFO] Deploying com.snaplogic:module-two:1.0-SNAPSHOT at end
[INFO] ------------------------------------------------------------------------
[INFO] Reactor Summary:
[INFO]
[INFO] module-one ......................................... SUCCESS [  3.477 s]
[INFO] pom-root ........................................... SUCCESS [  0.228 s]
[INFO] module-two ......................................... SUCCESS [  1.446 s]
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 5.308 s
[INFO] Finished at: 2019-05-15T12:10:55-06:00
[INFO] Final Memory: 24M/437M
[INFO] ------------------------------------------------------------------------

Similarly, the debug log shows the two initializations of the maven-deploy-plugin:

[DEBUG] Created new class realm plugin>org.apache.maven.plugins:maven-deploy-plugin:2.8.2
...
[DEBUG] Created new class realm plugin>org.apache.maven.plugins:maven-deploy-plugin:2.8.2-1119294797

So, the addition of the new module (“slbugs”) in our production build (that didn’t define a <pluginRespositories> and didn’t use the root POM as its parent), created a new context that resulted in new classloaders being used when the root POM (and its child modules) executed. This caused the maven-deploy-plugin’s readyProjectsCounter static AtomicInteger to start once again from 0 (instead of 1 as it should have been incremented when the first module was deployed), resulting in the off-by-one error when compared to the count of the reactor module (which wasn’t static), meaning the parent and child modules never meeting the condition that would trigger the deployment.

As for resolving this, I found that if both pom-root and module-one “matched” when it came to defining the <pluginRepositories>, then the deployment would work; meaning:

  • if neither defined it, the deployment worked
  • if both defined it, the deployment worked (however the pluginRepository’s id and urls must be the same)

The standalone project I created to demonstrate this is available on GitHub here: https://github.com/robinhowlett/maven-deploy-plugin-gotcha

The master branch represents the non-working deployment, and the fix branch represents the working example (with the <pluginRepositories> removed from the root POM).
